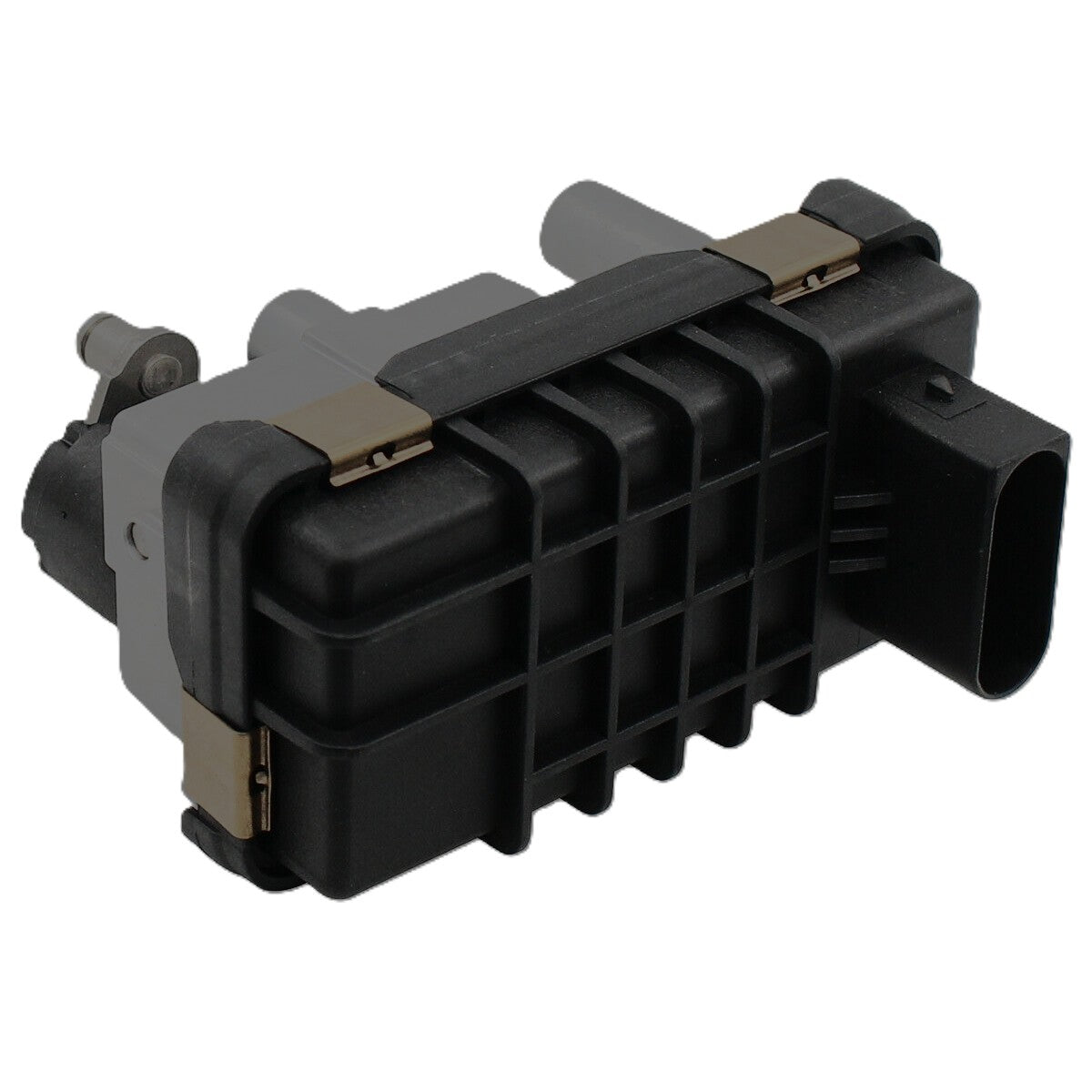

Name: Jaguar X-Type S-Type Turbo Actuator Repair Service
Brand: RK Elextronix LTD
Price: 140.00 GBP
Availability: InStock

Jaguar X-Type S-Type Turbo Actuator Repair Service

£140.00

🔧 Common Failure Symptoms

These are the key symptoms typically seen when the turbo/boost control system is failing:

Limp home mode
Restricted performance
Flashing glow plug light
Engine Management Light (MIL) ON
Lack of power / no power
“Gearbox Fault” message in cluster LCD
Intermittent power delivery
Poor boost response under load

Note: The “Gearbox Fault” message is common on these vehicles when the engine/ECU sharply limits torque — the transmission control module flags a driveline issue because of low engine output.

⚠️ Common Fault Codes

These are the Diagnostic Trouble Codes (DTCs) frequently logged with this failure pattern:

Code	Description
P132A	Turbo Charger Boost Control
P132B	Turbo Boost Control A Performance

Both codes point toward the turbo boost control system — usually the actuator, solenoid, sensor or related wiring/components.

🚗 Affected Vehicles

These issues are especially common on diesels from the Jaguar X-Type and S-Type ranges:

Jaguar X-Type (2003–2010)
Jaguar S-Type (2004–2008)

Often seen on 2.0/2.2L diesel engines with electronic boost/wastegate control.

🔩 Common Failing Part Numbers

Failure is most often traced to the boost control/electronic actuator hardware. Common part numbers include:

✅ Turbo Boost Actuators / Controllers

6NW 008 412 / 712120 / G-221
6NW 009 206 / 752406 / G-36
6NW 008 412 / 712120 / G-149

Our Repair Process In 3 Easy Steps:
STEP 1
Carefully remove your unit from your vehicle. If you are not sure then please contact your local garage or google for removal instructions.

STEP 2
Complete transaction and print a purchase receipt and send it along with your item to our workshop address. Securely pack your item.(if you have no printer then please manually write your details on paper please include the transaction details from ebay).

STEP 3
Once we have received your unit we will inspect and repair your unit and after thorough testing we post back to you.
Customer Information:

Typical repair time can be between 1-3 working days upon receiving the parcel. If parts need ordering then may take longer
Return postage is included in the repair price.
No further coding will be required to the unit after it has been repaired.
In the unlikely event of your unit not being able to be repaired can be due to previously being repaired or tampered with or has water contamination, if this happens then the item may not be repairable, we will contact you and update you about this.
The dealers cannot offer you this service and would recommend a direct replacement which can be very expensive
